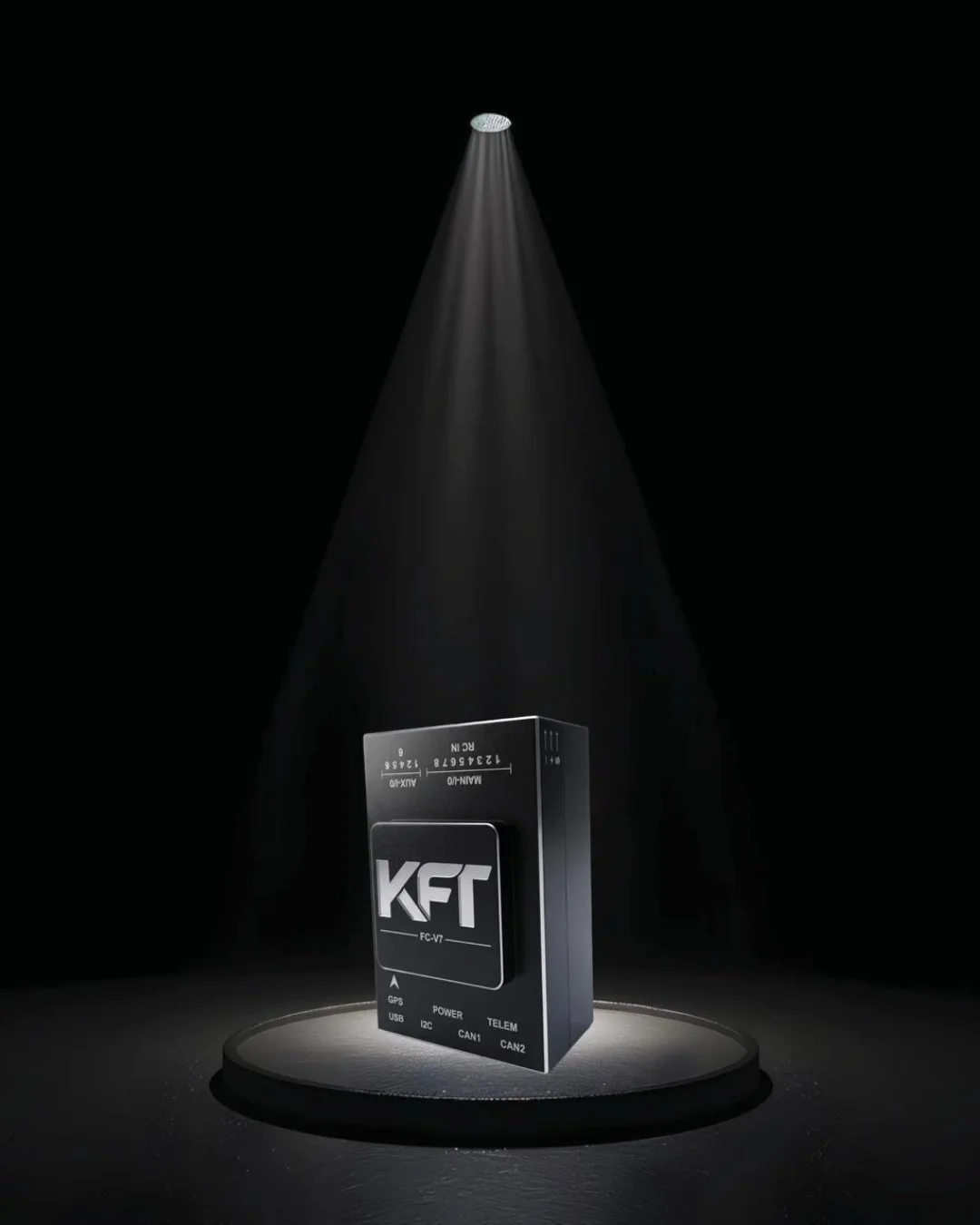

KFT Agri-V7 Combo
The KFT Agri-V7 is a Made in India next-generation industrial flight controller developed specifically for agricultural UAVs. An intelligent flight control along with redundant safety architecture, precision navigation, and advanced agricultural interfaces delivers stable, accurate, and reliable performance for every mission.
KEY FEATURES
Engineered with high-speed processing, redundant sensor architectures, and integrated smart farming interfaces.
High Performance Processing
Powered by a high-performance processor for faster response, smooth and reliable autonomous mission execution.
Redundant Sensors
Dual IMUs, dual barometers, and Compass to improve flight safety and reliability through continuous sensor validation.
Multi-GNSS Navigation
Supports GPS, GLONASS, Galileo, BeiDou, and NavIC for fast satellite acquisition and accurate positioning.
Wide Voltage Power System
Supports 16Vā100V (4Sā24S) input with multiple power protection mechanisms for reliable operation.
Smart Agricultural Control
Supports up to 4 spray pumps and flow meter monitoring for intelligent spraying operations.
Intelligent Logging
Stores up to 1 Lakh+ flight logs for maintenance, diagnostics, and mission analysis.
Status Indicator
Special RGB LED dedicated for live drone status indication.
Current Sensing
Precision monitoring of the overall current consumption.
Industrial Reliability
Designed for reliable operation in environmental temperatures ranging from -10Ā°C to +60Ā°C.
š¾ Software & Agricultural Control
- Software Support: KFT GCS Android App (Available on Playstore), KFT Configurator (Available on Microsoft Store), & Drone Operations Management Software (Available).
- Spray Systems: Up to 4 Pump Outputs with Variable Rate Spraying.
- Flow Meter Inputs: One Flow Meter Input for active flow tracking.
- Low Battery Failsafe: Failsafe Cut-Off protection on Low Battery detection.
š Performance Highlights & AI Features
- Dual GNSS Hover Accuracy: Horizontal: Ā±1.0 m | Vertical: Ā±0.5 m.
- Speed Profile: Maximum Horizontal Speed: 10 m/s | Maximum Climb / Descent Speed: 1 m/s.
- AI ā Obstacle Avoidance: Native interface support for obstacle avoidance systems.
- Object Detection & Tracking: Supports external object detection and tracking modules.
TECHNICAL SPECIFICATIONS
Official technical specifications for the KFT FC-V7 flight controller.
| Processor | High-Performance 32-bit Flight Processor |
|---|---|
| Failsafe Co-Processor | Independent Safety Co-Processor |
| IMU | Redundant Industrial-Grade IMUs |
| Barometer | Redundant High-Precision Barometers |
| Compass | Industrial-Grade Electronic Compass |
| GNSS Support | GPS ā¢ GLONASS ā¢ Galileo ā¢ BeiDou ā¢ NavIC (Supports 32+ Satellites) |
| RTK Support | External RTK Module Supported |
| AI Support (Additional Feature) | AI ā Obstacle avoidance system Object detection and tracking (External) |
| Input Voltage (Power Module) | 12V ā 100V DC (3S ā 24S LiPo) |
| Output Voltage (Power Module) | 5.3 ā 5.5V DC |
| Current Sensing | 200A, Hall Effect |
| Operating Temperature | -10Ā°C to +60Ā°C |
| Logging Capacity | Up to 1 Lakh+ Flight Logs |
| Interfaces | CAN1, CAN2, USB, IĀ²C, PWM, GPS, Telemetry, Power |
| Dimensions | 78.3 Ć 45 Ć 32 mm |
| Weight | 100 Ā± 5 g |
| Power Protection | Reverse Polarity, Over-Voltage, Over-Current, Ignition Spike Protection |
Upgrade to KFT FC-V7 Architecture
Deploy Made-in-India, multi-GNSS precision flight control and advanced agriculture interfaces into your drone fleet.
